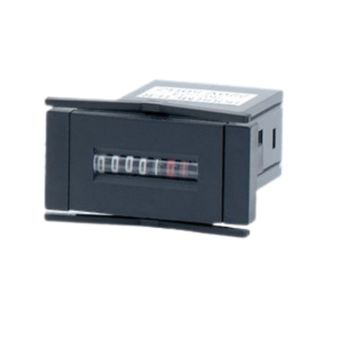

Miniature Hour Meter
Hour Meter offered by us is used to measure the operating electric hour of any equipment. This meter is light weight, easy to use and has low maintenance cost. We check the quality of this meter on the basis of accuracy before offering it to the clients. Our Hour Meters can be offered to the clients at cost effective rates.
Other Details
| Model Name/Number | Miniature |
| Standard Supply | 230V AC, 50Hz |
| Permissible Voltage Fluctuations | +10 to 15% |
| Power Consumption | 2Watts at 50Hz |
| Temperature Range | -20°C to 65°C |
| Duly Cycle | Continuous |
| Voltage Proof Test | 2Kv RMS for 1 min |
| Mounting Type | Flush Panel body Suitable for insertion on the switch panel board recess of 48 X 24 mm square with plastic moulded clamp |
| Panel Cutout | 32.5mm X 21.8mm |
| Weight | 55gms.. |
| Accuracy Counting Capacity with Accuracy Display | Mains Frequency 99999.99 1/10th & 1/100th |
| External Appearance of the Display | 1st 5 digit with white on black printing & last 2 digit red on black printing |
| Front Facia | 48 X 48 mm |
